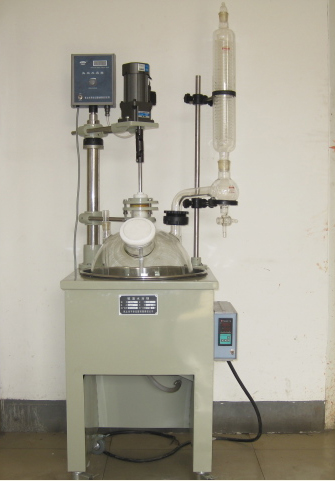

单层玻璃反应釜

欢迎来到西安茗创达生物科技有限公司官方网站！

热门关键词：

返回列表发布人：wubaiyi 发布时间：2013-07-18 14:50:24

型号 Model		F2H	F5H	F20H	F20H2	F50H2
基本参数	反应瓶 Reaction flask(L)	2	5	20	20	50
	瓶口数 The mouth number of the bottle	4	4	5	6	6
	搅拌功率 Stirring power(W)	90	120	250	250	250
	转速 Speed(rpm)	60-1300	40-1700	40-1700	40-1700	40-720
	搅棒轴径 The diameter of Stirring bar(mm)	φ6	φ10	φ10	φ10	φ12
	浴锅 Heating bath	1.5kw 180℃	2kw 180℃	3kw 180℃	3kw 180℃	6kw 180℃
	电源 Power(V)	220	220	220	220	380
功能配置	变频调速 Frequency-converting	/	●	●	●	●
	真空密封 Vacuum sealing	●	●	●	●	●
	±0.2℃温控 ±0.2℃controlling of temperature	●	●	●	●	●
	浴锅放液 Discharge of healing bath	●	●	●	●	●
	PTFE搅拌 PTEE stirring bar	●	●	●	●	●
	加料活塞 Charging cork	●	●	●	●	●
	测温管 Tube for testing temperature	●	●	●	●	●
	回流冷凝器 Reflux condenser	○	●	●	●	●
	蒸馏冷凝系统 Distillation condenser system	/	○	○	○	○
	真空表 Vacuum meter	/	○	●	●	●
	倾斜式立体搅拌 Inclined stereoscopic stirring	/	/	●	●	●
	自动正反搅拌 Automatic stir in CW or CCW	/	/	○	○	●
	多功能口 Mouth for muti-fanctions	/	/	●	●	●
	下出料口 Low mouth for taking material out	/	/	/	●	●
	放料活塞 Discharging cork	/	/	/	●	●
	浴锅盖 Cap of heating bath	○	○	○	○	○
	防积塞 Corke for anti-block	/	/	/	●	●
	低速增力 Increase power under lower speed	/	○	○	○	○
	冷却盘管 Cooling coils	/	/	○	○	○
